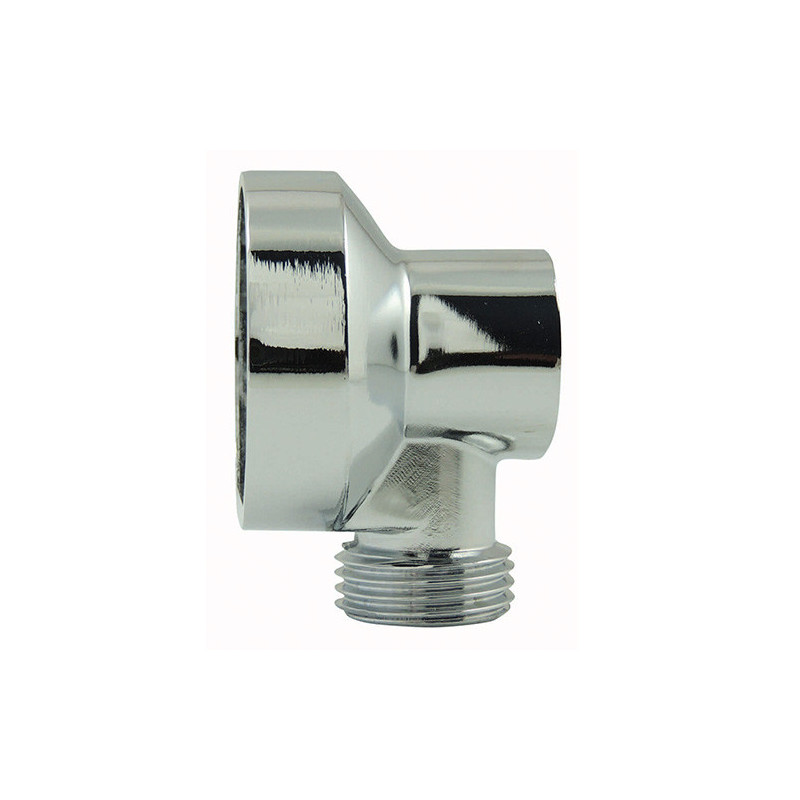

Raised wall plate without nut - chrome plated brass

Ref. 1173

Conditions of use

• Applications : Drinking water supply, water treatment, sewerage system, irrigation.

• Fluids : Drinking water, glycol water, non-aggressive fluids.

• Pressure : PN 16 bar.

• Temperature : -5°C / +70°C.

Certifications

• ACS : Comply with French drinking water regulation.

• CE : According to 2014/68/EU directive.

Technical features

• Ductile iron EN-GJS-400-15 (GGG-40) body + epoxy coating. Standardised face-to-face according to EN 558-1 series 20.

• Aluminium lockable handle + epoxy coating. 10 positions from 0 to 90°.

• Ductile iron EN-GJS-400-15 (GGG-40) disc + 300μm epoxy coating.

• Flange connection with threaded lugs (EN 1092 PN10-16).

• ISO 5211 pad and square drive shaft for motorisation.

• Stainless steel AISI 410 through shaft with disc position indicator and retaining ring. Disc driving by high-precision square machining (no pin).

• EPDM removable dovetail seat.

• PTFE shaft bushing ensuring perfect alignment of the shaft and reducing frictions.

• Long stem for insulation.

• Nameplate with total traceability : PN, DN, batch number, materials and logos (CODITAL, ACS and CE).

See all configurations

DN	PN	Brides	Carré	Code
50	16	GN10-16	9	2011730005000	3660360222855	1
65	16	GN10-16	9	2011730006500	3660360222862	1
80	16	GN10-16	9	2011730008000	3660360222879	1
100	16	GN10-16	11	2011730010000	3660360222886	1
125	16	GN10-16	14	2011730012500	3660360222893	1
150	16	GN10-16	14	2011730015000	3660360222909	1
200	10	GN10	17	2011730020000	3660360222916	1
