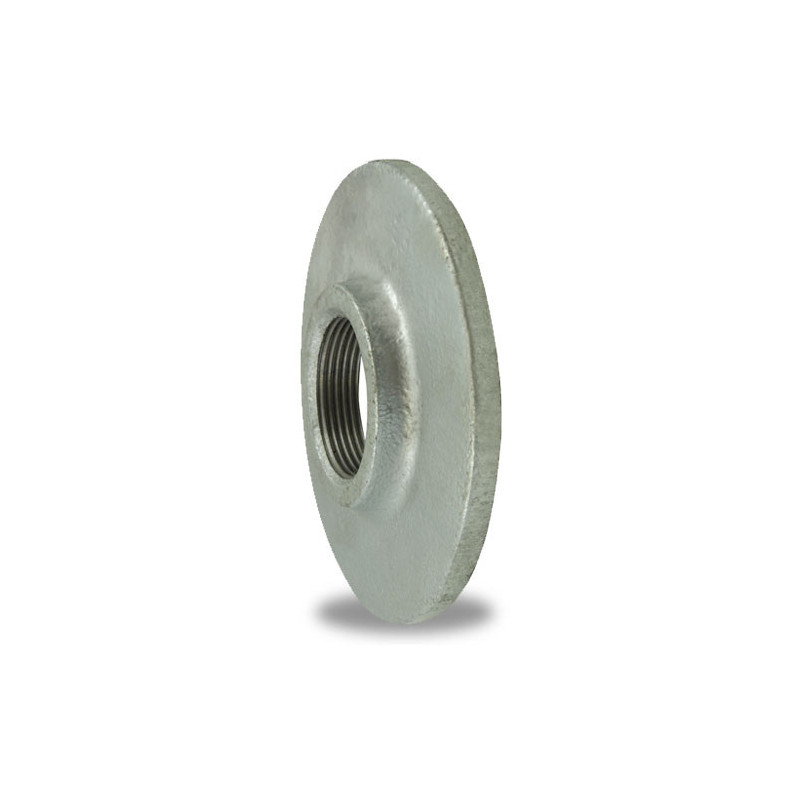

Female threaded round flange without bolt hole, galvanised

Ref. 321 GALVA
Applications : water, drinking water, gas, steam, non-corrosive liquids, and gases. HVAC systems.

Design, manufacturing and control :
- Fittings are produced according to EN 10242 and ISO 49 standards.
- Material grade : EN-GJMW-400-5 according to EN 1562.
- Finishing is galvanised (th. 70µm). Both are protected against corrosion to preserve fittings.
- All threaded connections comply with ISO 7-1 standard (BSPT), with tapered Mâle end (R) and parallel Femelle end (Rp). SWivel nuts for union fittings comply with ISO 228-1 standard (BSPP).
- 100% of the fittings are leak tested.
ILV See the POS marketing kit Malleable iron fittings
  • DVGW
  • FM
See all configurations
Ø intérieur Ø extérieur Code SU Carton Qty
1/2" 80 1503210001500 10 40
3/4" 90 1503210002000 10 30
1" 100 1503210002600 10 60
1"1/4 120 1503210003300 1 40
1"1/2 130 1503210004000 1 32
2" 140 1503210005000 1 20
2"1/2 160 1503210006600 1 15
3" 190 1503210008000 1 10
4" 210 1503210010200 1 9
