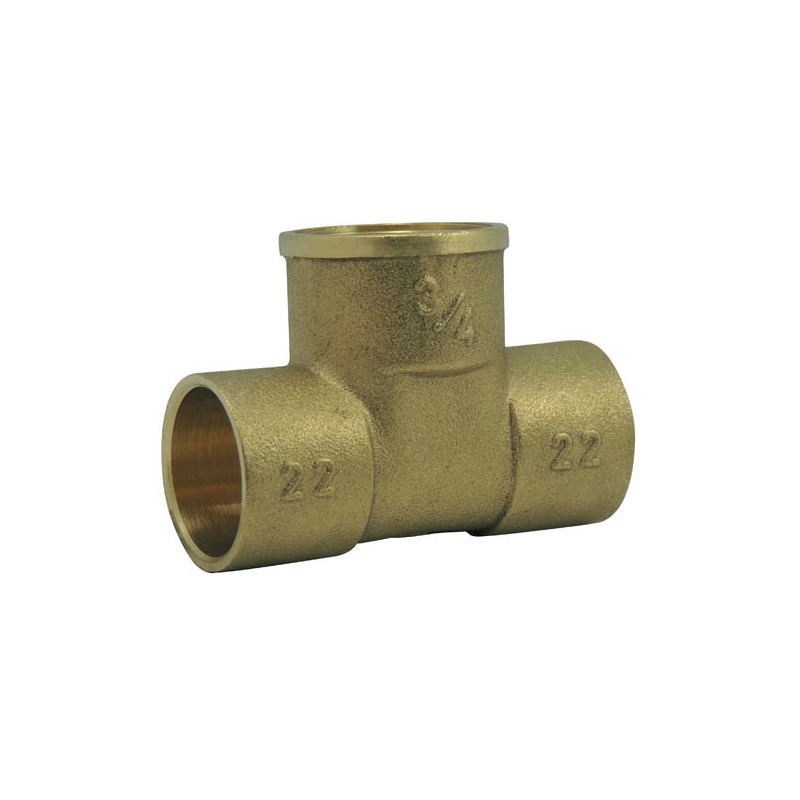

Tee Female BSP central end/SW

Ref. 1130
Socket welding fittings for copper piPE : Tee - Femelle BSP central end / SW

Use : Cold and hot water, Hvac systems, gas, compressed air...
Material : Brass
Connection : "G" ISO 228-1 (BSPP)
DesiGN : End connectors according to EN 1254-1 standard (fittings for capillary soldering or capillary brazing to copper tubes).
Pressure and temperature : See attached table (Photo gallery or page 158 CODITAL2019 catalogue)

ILV See the POS marketing kit Brass fittings
See all configurations
G Ø Code SU Sachet Carton Qty
3/8" 12 2011300121200 10 300
3/8" 14 2011300121400 10 10 250
1/2" 12 2011300151200 10 10 250
1/2" 14 2011300151400 10 10 200
1/2" 16 2011300151600 10 10 160
1/2" 18 2011300151800 10 10 150
3/4" 22 2011300202200 10 10 100
