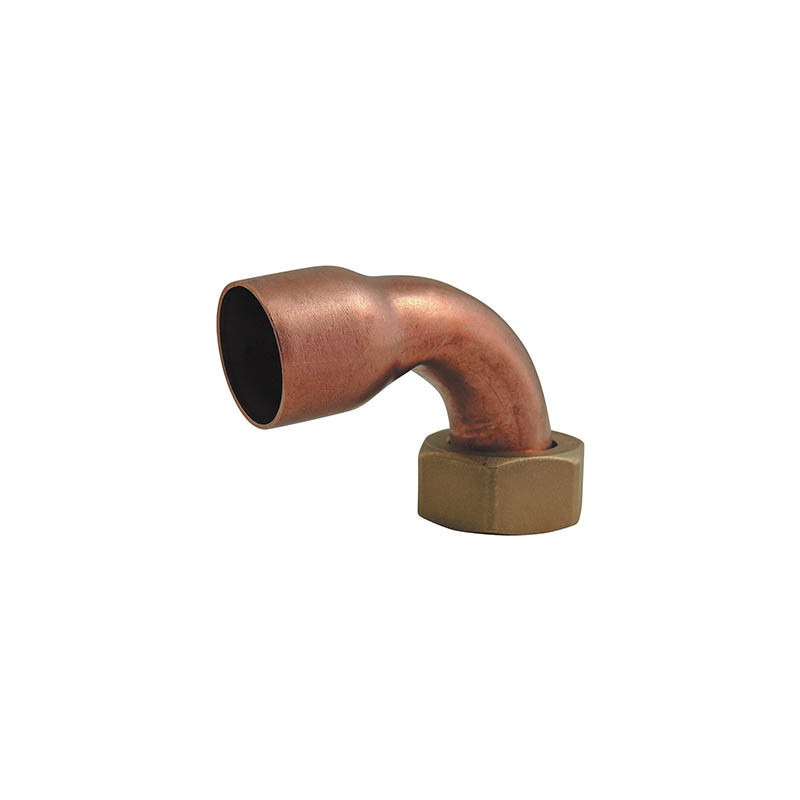

• Copper-brass fitting, elbow 2-pcs with flanged end
Copper-brass fitting, elbow 2-pcs with flanged end
search

Copper-brass fitting, elbow 2-pcs with flanged end

Ref. 2359
  • Features :
Socket welding connection according to french standard NF EN 1254-1.
Nut Femelle thread according to ISO 228-1 standard (BSPP).
Flanged end (flat gasket sealing).
  • Materials :
CW617N brass SWivel nut.
CW024A copper piPE (4MS compliant).
ILV See the POS marketing kit Brass fittings
See all configurations
Ø écrou Ø tube Code EAN SU Sachet Carton Qty
3/8" 12 2023590121200 3660361710160 10 10 700
3/8" 14 2023590121400 3660361710177 10 10 700
3/8" 15 2023590121500 3660361710184 10 10 700
1/2" 12 2023590151200 3660361710191 10 10 500
1/2" 14 2023590151400 3660361710207 10 10 500
1/2" 15 2023590151500 3660361710214 10 10 500
1/2" 16 2023590151600 3660361710221 10 10 260
1/2" 18 2023590151800 3660361710238 10 10 210
3/4" 14 2023590201400 3660361710245 10 10 210
3/4" 15 2023590201500 3660361710252 10 10 300
3/4" 16 2023590201600 3660361710269 10 10 300
3/4" 18 2023590201800 3660361710276 10 10 250
3/4" 22 2023590202200 3660361710283 10 10 200
1" 22 2023590262200 3660361710290 10 10 150
1" 28 2023590262800 3660361710306 10 10 100
