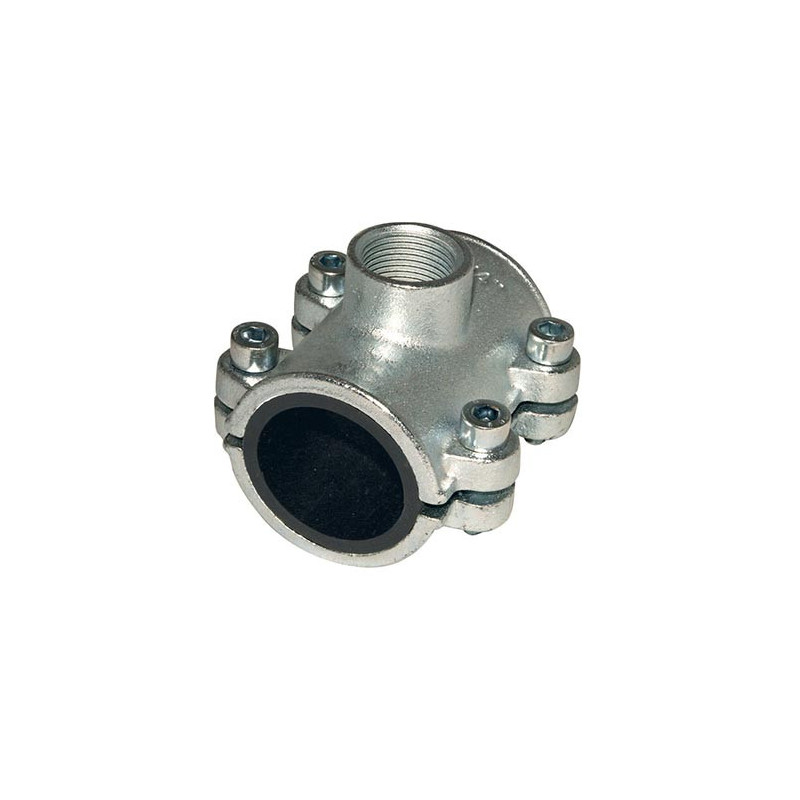

Saddle

Ref. 613

Compression fittings : Saddle

Use : Water, compressed air
Material : Galvanized malléable iron EN-GJMB-350-10 / EN-GJMB-350-6 , EPDM seals, brass or galvanic steel compression nut, galvanized steel washer
Connection : Rp Femelle threaded end according to ISO 7-1 standard (BSPT)
Pressure : PN 16 bar
Temperature : 0/+80°C

Designed for connecting or repairing steel piPE according to EN 10255.

See the POS marketing kit Malleable iron fittings

See all configurations

Ref. 613

DN	Ø	Ø tube	Rp	Code
15	21.3	15/21	1/2"	1506130151500		1	55
20	26.9	20/27	1/2"	1506130201500	3660360170576	1	40
25	33.7	26/34	1/2"	1506130261500	3660360170583	1	32
25	33.7	26/34	3/4"	1506130262000	3660360170590	1	34
32	42.4	33/42	3/4"	1506130332000		1	24
40	48.3	40/49	3/4"	1506130402000	3660360170613	1	24
50	60.3	50/60	1"	1506130502600	3660360170620	1	18
65	76.1	66/76	1"	1506130652600	3660360170637	1	12
80	88.9	80/90	1"	1506130802600	3660360170644	1	10
100	114.3	102/114	2"	1506131025000		1	3
