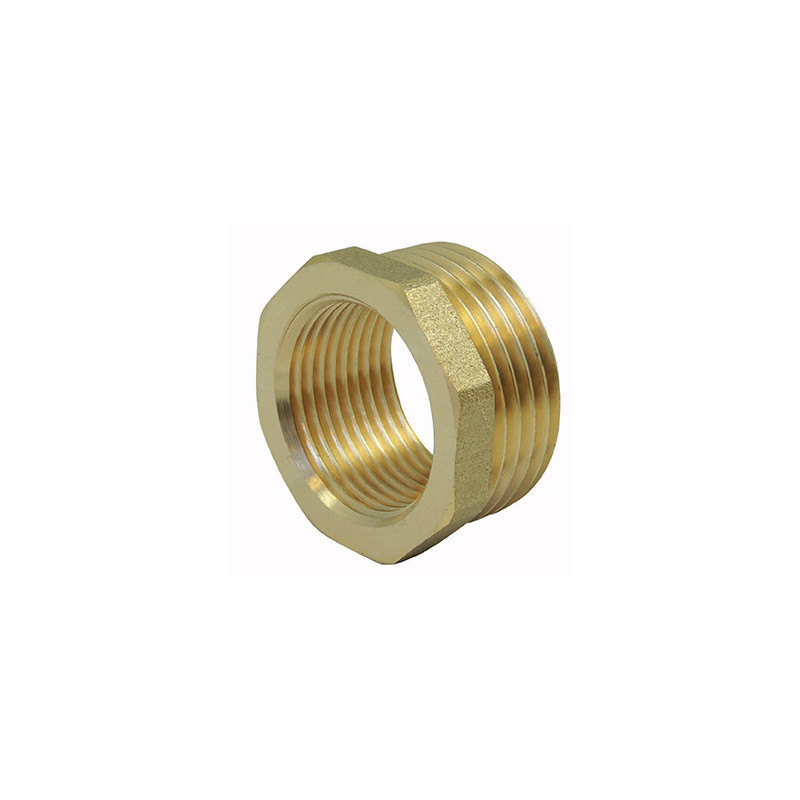

Male and Female threaded reducer

Ref. 1241

Brass threaded fittings : Mâle/Femelle Reducing socket

Use : Plumbing, drinking water supply
Fabrication : Forging and machining or bar machining
Material : Brass CW617N
Connection : "G" ISO 228-1 (BSPP)
Flat areas to hold the fitting during tightening, suitable with metric spanners
Flat and large bearing areas on Mâle and Femelle thread ends
Guaranteed flat gasket sealing (thickness from 1mm)
Pressure : PN 16 bar
Temperature : Depending on sealing material
Certification : Comply with french drinking water regulation
Packing : Label on plastic bag in 3 languages, with barcode

See the POS marketing kit Brass fittings

See all configurations

Ref. 1241

ØA	ØB	Code
1/4"	1/8"	2012410080500		10	10	800
3/8"	1/8"	2012410012500		10	10	800
3/8"	1/4"	2012410012800		10	10	800
1/2"	1/8"	2012410015500		10	10	640
1/2"	1/4"	2012410015800		10	10	640
1/2"	3/8"	2012410151200		10	10	640
3/4"	1/4"	2012410020800		10	10	400
3/4"	3/8"	2012410201200		10	10	320
3/4"	1/2"	2012410201500		10	10	640
1"	1/2"	2012410261500		10	10	240
1"	3/4"	2012410262000		10	10	480
1"1/4	3/4"	2012410332000		5	5	120
1"1/4	1"	2012410332600		5	5	240
1"1/2	1"	2012410402600		5		160
1"1/2	1"1/4	2012410403300		5		200
2"	1"	2012410502600		1		60
2"	1"1/4	2012410503300		1		60
2"	1"1/2	2012410504000	3660361281431	1		60
