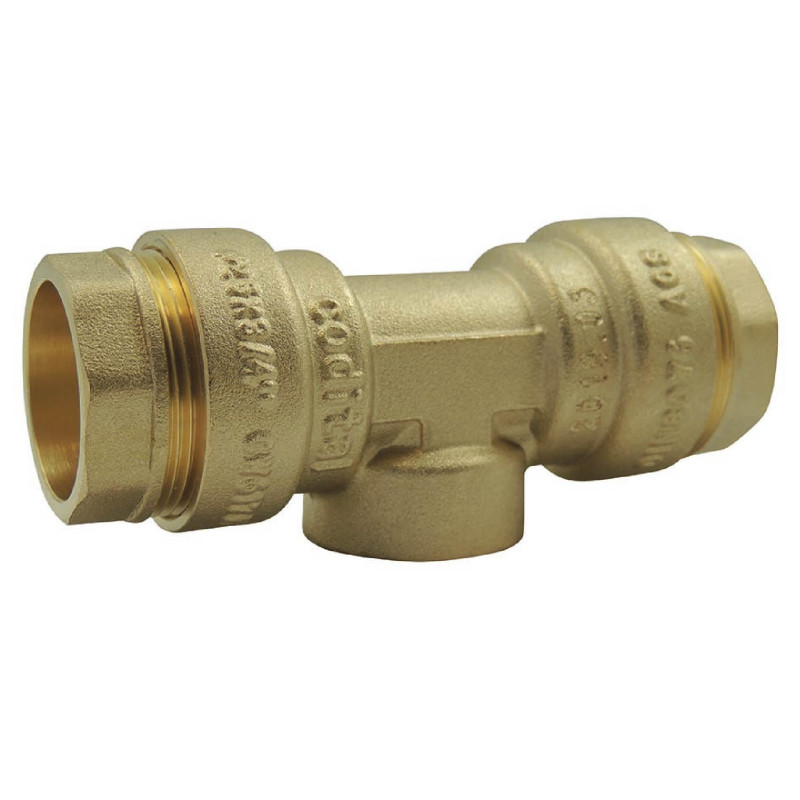

Tee with central Female thread - s7000l

Series 7000L, Compression fittings for PE pipes : Tee with central Femelle thread

Use : Drinking water supply, irrigation and watering
Material : CW617N Brass, H62 Brass notched ring, EPDM O'ring
DesiGN : Designed, manufactured and controlled according to DIN 8076.
Flat areas to hold the fitting during tightening, suitable with metric spanners
Femelle threaded ends according to ISO 228-1 standard (BSPP).
Temperature : 0°C / + 70°C
Pressure : PN 16 bar
Certification : ACS ; Comply with French drinking water regulation
Assembly of the piPE without dismantling the nut.
Installation : Comply with good practice guide and avoid all corrosion risks due to the environment and installation conditions (especially electrolysis phenomenon). See instructions N-7000L.
Individual label in 3 languages with barcode and QR code (to access technical sheet and notice from a smartphone).
