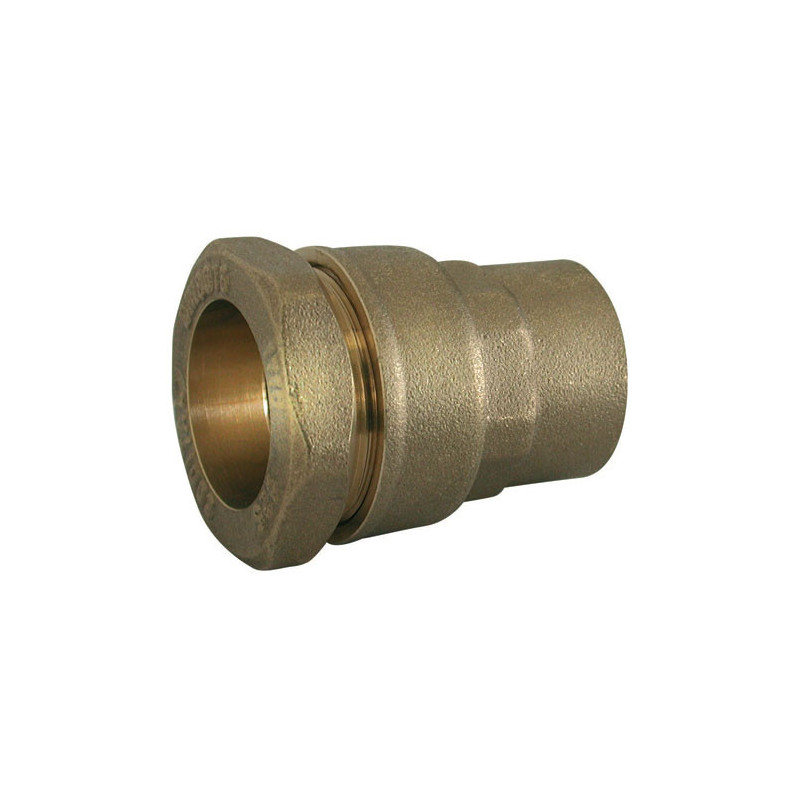

Female straight fitting for polyethylene pipes

Ref. 7340
Series 7000, Compression fittings for PE pipes : Femelle end

Use : Drinking water supply, irrigation and watering
Material : CW617N Brass, H62 Brass notched ring, NBR or EPDM O'ring, Stainless steel 304 bolt (from DN75)
Connection : Thread according to ISO 7-1 (BSPT)
DesiGN : DIN 8076 standard
Temperature : 0°C / + 50°C
Pressure : PN 25 bar (Ø16 to Ø50), PN 16 bar (> Ø50)
Certification : Comply with French drinking water regulation
Flat areas to hold the fitting during tightening, suitable with metric spanners
Flat and large bearing areas on Mâle and Femelle thread ends
Guaranteed flat gasket sealing (thickness from 1mm)

Related products :
7400 O’ring
7520 Spare kit (Nut, O’ring, notched ring, compression ring)

ILV See the POS marketing kit Brass fittings
  • ACS
See all configurations
ØA ØB Code EAN SU Sachet Carton Qty
16 3/8" 2073400161200 3660361270749 1 32 512
20 1/2" 2073400201500 3660361270756 20 20 320
20 3/4" 2073400202000 3660361273030 25 25 200
25 1/2" 2073400251500 3660361270947 20 20 160
25 3/4" 2073400252000 3660361270763 20 20 160
25 1" 2073400252600 3660361271074 20 20 160
32 3/4" 2073400322000 3660361270954 15 15 120
32 1" 2073400322600 3660361270770 12 12 96
40 1" 2073400402600 3660361271081 8 8 64
40 1"1/4 2073400403300 3660361271098 8 8 64
40 1"1/2 2073400404000 3660361270787 8 8 64
50 1"1/4 2073400503300 3660361271104 1 64
50 1"1/2 2073400504000 3660361270794 1 60
50 2" 2073400505000 3660361271111 1 60
63 2" 2073400635000 3660361270800 1 36
75 2"1/2 2073400756600 3660361270817 1 16
90 3" 2073400908000 3660361270824 1 12
