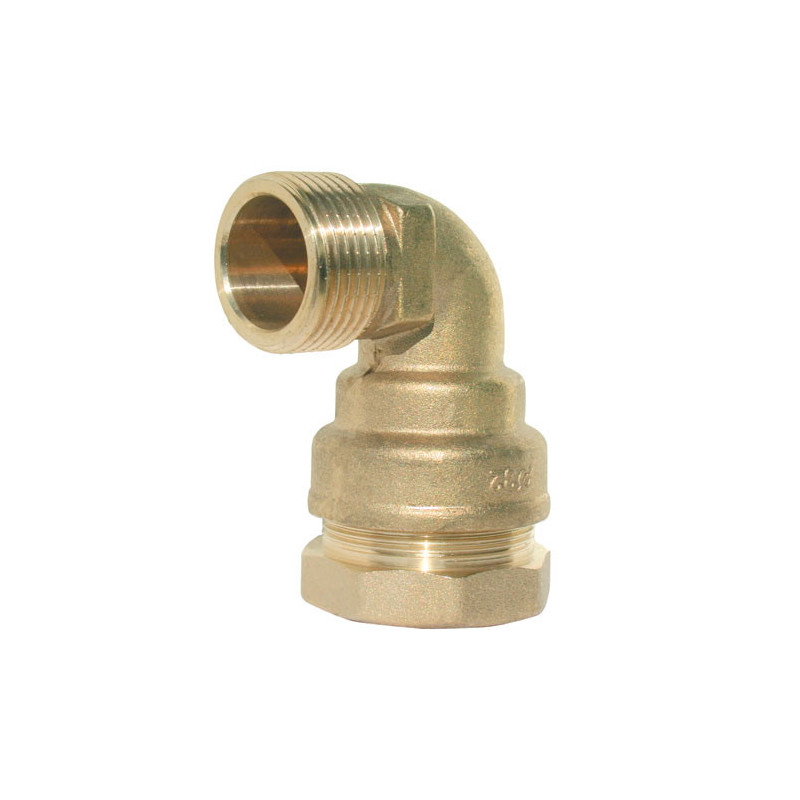

Compression fitting for polyethylene pipes - Male elbow

Ref. 7092

Series 7000, Compression fittings for PE pipes : Mâle end

Use : Drinking water supply, irrigation and watering
Material : CW617N Brass, H62 Brass notched ring, NBR or EPDM O'ring, Stainless steel 304 bolt (from DN75)
Connection : Thread according to ISO 7-1 (BSPT)
DesiGN : DIN 8076 standard
Flat areas to hold the fitting during tightening, suitable with metric spanners (Easy tightening through XL nut)
Flat and large bearing areas on Mâle and Femelle thread ends
Guaranteed flat gasket sealing (thickness from 1mm)
Temperature : 0°C / + 50°C
Pressure : PN 25 bar (Ø16 to Ø50), PN 16 bar (> Ø50)
Certification : Comply with French drinking water regulation

Related products :
7400 O’ring
7520 Spare kit (Nut, O’ring, notched ring, compression ring)

See the POS marketing kit Brass fittings

See all configurations

Ref. 7092

ØA	ØB	Code
20	1/2"	2070920201500	3660361270084	25	25	200
25	3/4"	2070920252000	3660361270091	15	15	120
32	3/4"	2070920322000	3660361272804	10	10	80
32	1"	2070920322600	3660361270107	8	8	64
40	1"1/4	2070920403300	3660361270114	5		40
50	1"1/2	2070920504000	3660361270121	1		22
63	2"	2070920635000	3660361270138	1		21
75	2"1/2	2070920756600	3660361270145	1		8
